Steel Strip Ring Forming Machine 6 Axis Metal Ring Making Machine Laser Marking

Steel Strip Ring Forming Machine

6 Axis Metal Ring Making Machine

Laser Marking Metal Ring Making Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

Steel Strip Ring Forming Machine

6 Axis Metal Ring Making Machine

Laser Marking Metal Ring Making Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

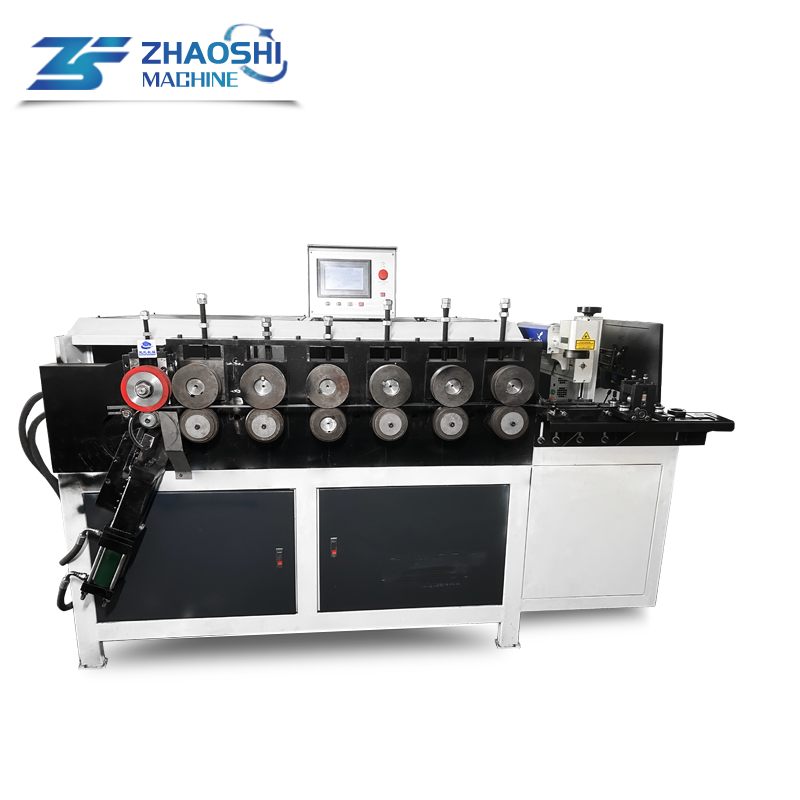

Steel Strip Ring Forming Machine With Laser Marking

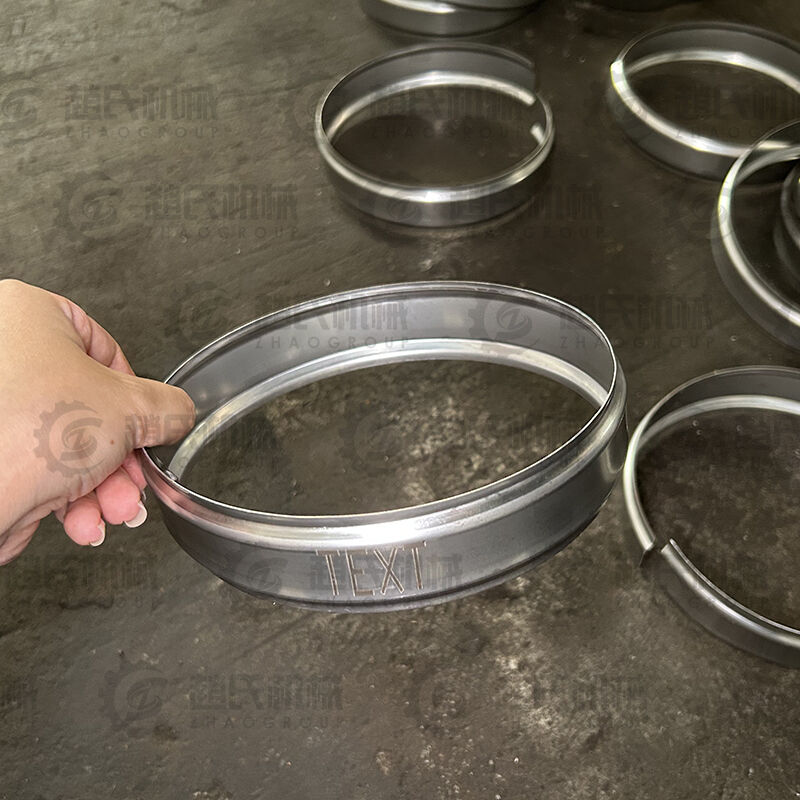

This all-in-one machine integrates feeding, ring forming, fixed-length cutting and laser marking. It rolls steel strip into circular rings/flanges and prints part number, specification, logo and production date by laser, ideal for mass production of steel flanges and hardware rings.

Technical Parameters

No.	Specification	Value	Specification	Value
1	Model	ZS-DQJ-6Z	Alias	Looping Machine / Rounding Machine
2	Material Requirement	Supports material thickness up to 2MM, coil diameter ≥130MM, quarter circle
3	Number of Axes	6 axes	Control System	PLC Control System
4	Control Screen	Button / Touch Screen	Wire Feed Length	Unlimited
5	Wire Feed Length	Unlimited	Accuracy Tolerance	±0.3MM
6	Wire Feed Speed	Approx. 25 m/min (adjustable)	Input Voltage	380V 50Hz
7	Machine Weight	2000KG (actual weight prevails)	Machine Dimensions	2200×1000×1550 MM
	Structural Components
8	Component Name	Specification/Material	Brand/Model	Remarks
9	Servo Motor	11kw	Depuxin	/
10	Hydraulic Motor	5.5kw	Sanye	/
11	Wire Feed Roller	Cr12mov	Heat treated 56-60°	/
12	Straightening Roller	Cr12mov	Heat treated 56-60°	/
13	Gear	20CrMnTi	Precision ground, heat treated 56-60°	/
14	Control Method	HMI panel control, switch operation, manual jog & auto selection
15	Process Steps	Loading, pulling, straightening, pressing, rolling, cutting, automatic product discharge
