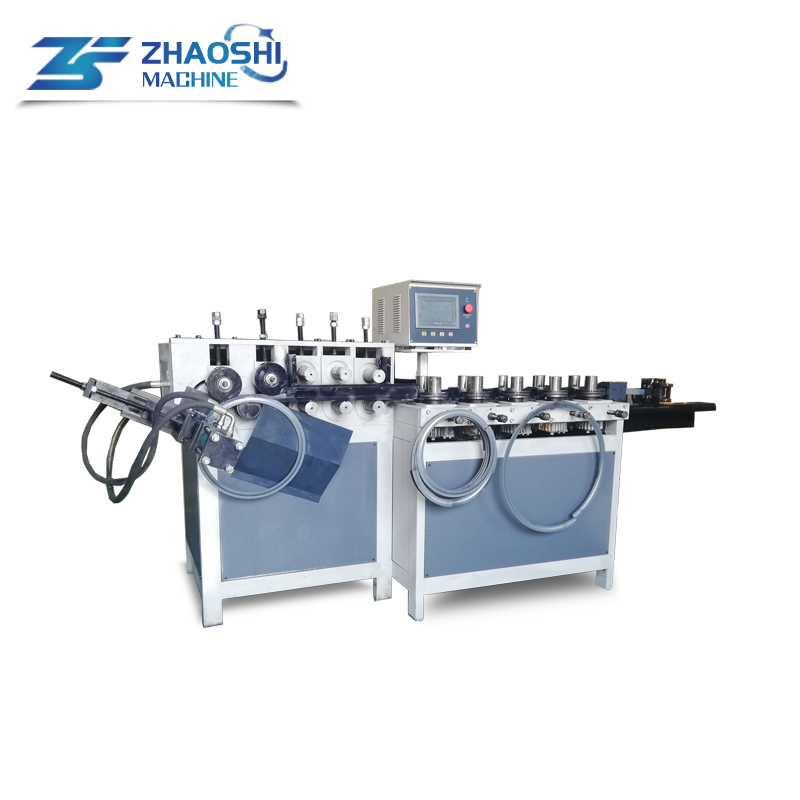

Multi Axis Ring Forming Machine Ring Bending Machine High Efficiency

Multi Axis Ring Forming Machine

Multi Axis Ring Bending Machine

Ring Bending Machine High Efficiency

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

Multi Axis Ring Forming Machine

Multi Axis Ring Bending Machine

Ring Bending Machine High Efficiency

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

Firewood Stove Coil Forming Machine

1. Product Overview

The Automatic Wood Stove Ring Forming Machine is a professional roll-forming equipment specially designed for manufacturing circular stove rings. It is widely used to produce firewood stove rings, cooker rings, furnace rings and metal circular accessories for heating stoves and kitchen cookers. This integrated machine realizes fully automatic processing from straightening, feeding, rolling, shaping to fixed-length cutting, which greatly improves production efficiency and product consistency.

2. Working Principle & Process

Equipped with multi-axis precision rolling wheels, the machine gradually bends flat strip materials into standard circular shapes without wrinkling or deformation. The whole production process is automatic and continuous:

Material Straightening → Automatic Feeding → Gradual Rolling & Bending → Circular Shaping → Fixed-length Cutting → Finished Product Discharging

Supported by CNC touchscreen control, users can freely set the ring diameter, material width and thickness to switch different product specifications quickly

Technical Parameters

Item	Specification
Product Name	Eight-axis Stove Ring Forming Machine
Specification	Customized as required by customers
Ring Forming Accuracy	Within ±0.5mm
Ring Diameter Range	Customized as required by customers
Servo Feeding Motor	7.5KW
Hydraulic Cutting Motor Power	5.5KW (Sanye brand motor)
Wire Feeding Speed	12 meters per minute
Hydraulic Oil Type	Anti-wear 46# hydraulic oil
Fuel Tank Capacity	150 kg
Overall Dimension (L×W×H)	Approximately 3200×2000×1750 mm
Weight	Approximately 2000 kg
Voltage	380V, 50HZ
Mold	Made of 40 chromium steel, heat-treated with SKD11 process, hardness above HRC58
Rotating Shaft Quantity	Eight upper and lower rotating shafts
Shaft Width	60 mm
Wire Feeding Wheel Thickness	132 mm
Transmission Mode	Gear transmission
Control Mode	PLC & HMI panel control; equipped with switch operation, manual inching and automatic operation functions
