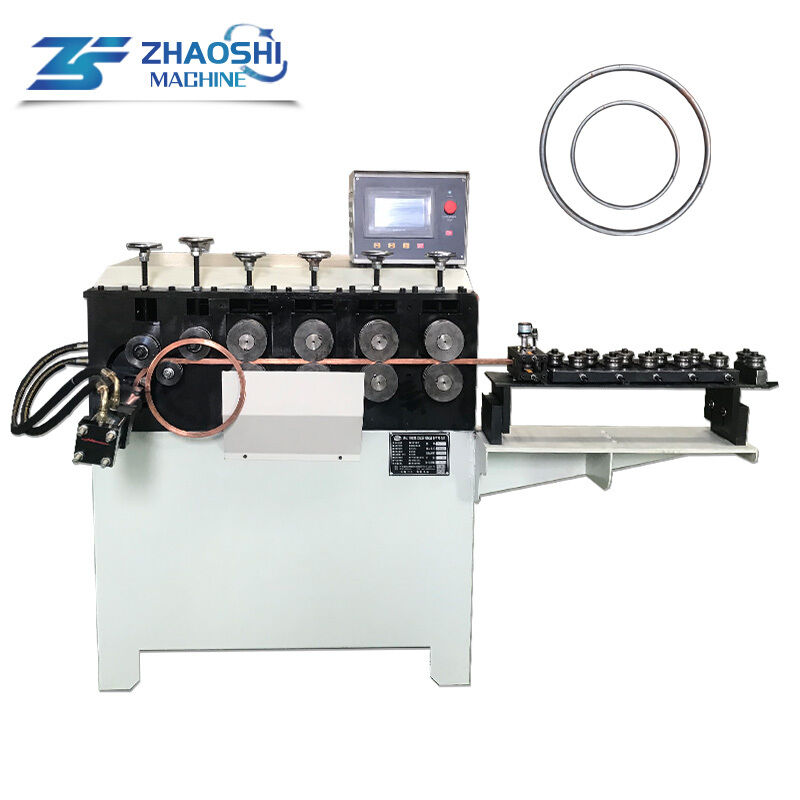

4 Axis Flat Bar Rolling Machine High Accuracy Coil Rolling Machine High Speed

4 Axis Flat Bar Rolling Machine

High Accuracy Coil Rolling Machine

High Speed Coil Rolling Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

4 Axis Flat Bar Rolling Machine

High Accuracy Coil Rolling Machine

High Speed Coil Rolling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

Flat Bar Coiling Machine

The flat bar coiling machine is special equipment for coiling and rounding flat iron into circular flanges and rings. It features simple operation, stable running and high coiling accuracy. It can process various sizes of flat bars efficiently with smooth and neat finished products. Widely used in duct manufacturing, ventilation engineering, fire protection pipe and hardware processing industries, it greatly improves production efficiency and reduces manual cost

Technical Parameters

Specification	Value
Product Name	4-Axis Clamp Forming Machine
Specification	According to customer drawing or sample
Looping Diameter Tolerance	Within ±0.5MM
Production Coil Diameter Range	As per customer requirements
Servo Wire Feeding Motor	5.5KW (Weichuang)
Hydraulic Cutting Motor	4KW (Fujian Sanye Motor)
Wire Speed	Wire feeding 18 m/min
Dimensions (L×W×H)	Approx. 2500×1550×1550MM
Weight	Approx. 800KG
Voltage	380V 50HZ
Operating Temperature	Normal temperature
Die Material	40Cr material, hardness within HRC50-60
Number of Rotation Axes	4 axes (up/down rotation)
Control Method	PLC HMI panel control, switch operation, manual jog & auto selection, automatic looping and cutting
Process Steps	Loading, pulling, counting, pressing, forming, rolling, cutting, automatic product discharge
