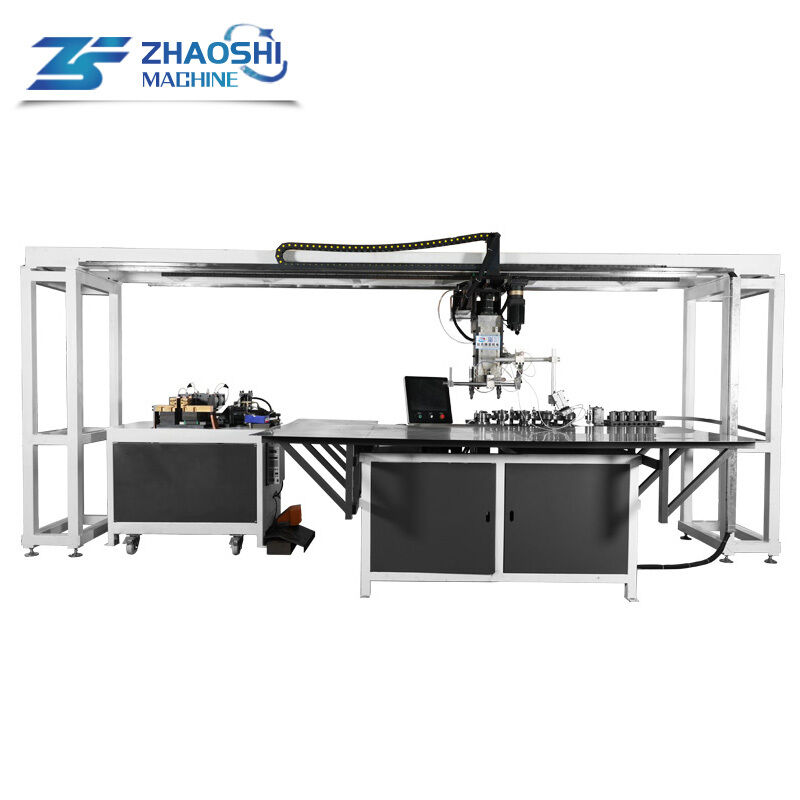

Full Automatic Roll Forming Machine High Speed Ring Making Machine

Full Automatic Roll Forming Machine

High Speed Ring Making Machine

Full Automatic Ring Making Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

Full Automatic Roll Forming Machine

High Speed Ring Making Machine

Full Automatic Ring Making Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

Automatic Production Line For Leisure Table Rings

Overview
This full-automatic line is designed for metal table rings/frames of leisure tables, coffee tables and patio furniture. It integrates wire uncoiling, straightening, feeding, ring forming, cutting, flash butt welding, grinding, straightening, inspection and unloading in one continuous process, producing closed, seamless, high-strength table rings in mass production.

Process Flow

Uncoiling → Straightening → Servo feeding → Ring forming → Cutting → Clamping → Flash butt welding → Weld grinding → Reshaping → Inspection → Automatic unloading

Main Equipment

Automatic uncoiler

Precision wire straightener

Servo feeder

CNC ring forming & butt welding machine (core)

Automatic weld grinder

Reshaping & leveling machine

PLC control system

Discharge conveyor & collector

Technical Parameters

No.	Specification	Value	Specification	Value
1	Model	ZS-FLJ-4Z	Alias	Looping Machine / Flanging Machine
2	Number of Axes	4 axes	Control System	PLC Control System
3	Control Screen	Button / Touch Screen	Wire Feed Length	Unlimited
4	Forming Speed	5-6 pcs/min	Input Voltage	380V 50Hz
5	Machine Weight	1200KG (actual weight prevails)	Machine Dimensions	2300×1300×1650 MM
	Structural Components
6	Component Name	Specification/Material	Brand/Model	Remarks
7	Feeding	3.5kw	Domestic	Servo Motor
8	Cutting Hydraulic	5.5KW	Domestic	Hydraulic Motor
9	Up/Down/Left/Right Adjustment (XY Axis)	1kw×2 pcs	Domestic	Servo Motor
10	Auto Size Adjustment	2kw	Domestic	Servo Motor
11	Gripping	Pneumatic	Domestic	Pneumatic
12	Straightening Rollers	12 sets
13	Wire Feed Roller Sets	4 sets
14	Wire Feed Roller Material	40Cr
15	Forming Wheel	Cr12mov
16	Applicable Wire Material	Stainless Steel	Material Size (Thickness×Width)	2.5mm×9
17	Cutting Blade	White Steel Blade (Cr12 Die Steel)	Zhao's	/
18	Bottom Blade	White Steel Blade (Cr12 Die Steel)	Zhao's	/
	Medium Frequency AC Welder
19	Model	IDW-10000T	Power Supply	IDW-10000T
20	Brand	Domestic	Transformer	Y225C
21	Control Method	HMI panel control, switch operation, manual jog & auto selection
22	Process Steps	Loading, pulling, straightening, pressing, rolling, cutting, welding
