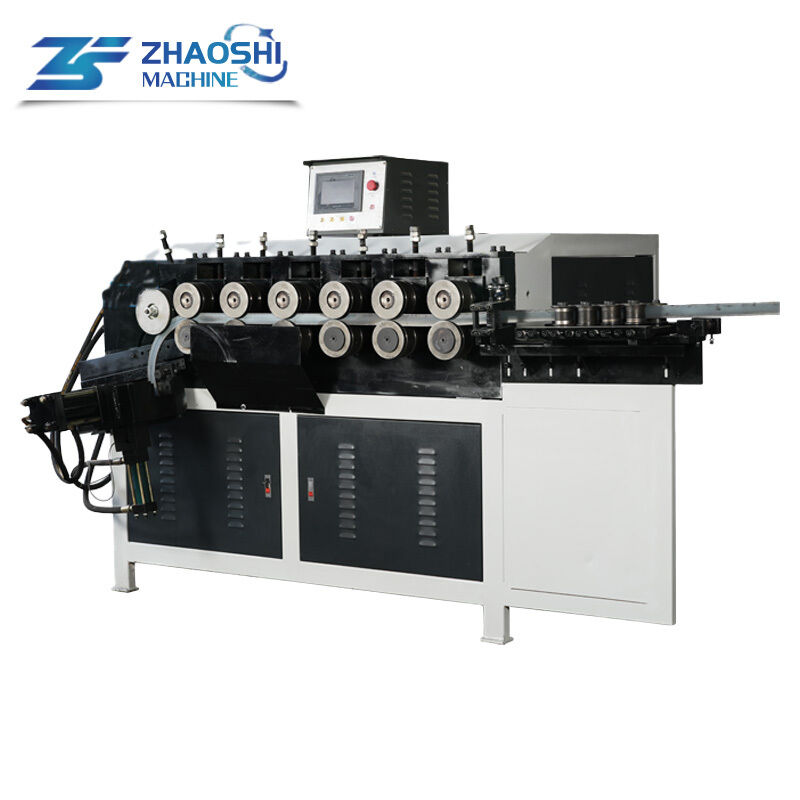

PLC Control Flange Forming Machine High Precision Pipe Flange Machine

PLC Control Flange Forming Machine

High Precision Pipe Flange Machine

PLC Control Pipe Flange Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

PLC Control Flange Forming Machine

High Precision Pipe Flange Machine

PLC Control Pipe Flange Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

Ventilation Pipe Flange Machine

The ventilation pipe flange machine is a professional device for HVAC, fire smoke exhaust and dust removal duct processing. It continuously rolls and forms galvanized steel and stainless steel sheets, completing TDF common plate flanges, angle iron flanges and round flanges in one pass.

Suitable for sheet thickness of 1.5–3 mm, it features servo feeding, hydraulic cutting and non‑stop continuous production. Equipped with PLC control, it ensures high forming precision, stable performance and quick specification changeover.

Widely used for rectangular/round ducts and fan connection flanges, it replaces manual bending and welding, greatly improving production efficiency while reducing labor and production costs.

Ventilation Pipe Flange Machine

Technical Parameters

No.	Specification	Value	Specification	Value
1	Model	ZS-DQJ-6Z	Alias	Looping Machine / Rounding Machine
2	Material Requirement	Supports material thickness up to 2MM, coil diameter ≥130MM, quarter circle
3	Number of Axes	6 axes	Control System	PLC Control System
4	Control Screen	Button / Touch Screen	Wire Feed Length	Unlimited
5	Wire Feed Length	Unlimited	Accuracy Tolerance	±0.3MM
6	Wire Feed Speed	Approx. 25 m/min (adjustable)	Input Voltage	380V 50Hz
7	Machine Weight	2000KG (actual weight prevails)	Machine Dimensions	2200×1000×1550 MM
	Structural Components
8	Component Name	Specification/Material	Brand/Model	Remarks
9	Servo Motor	11kw	Depuxin	/
10	Hydraulic Motor	5.5kw	Sanye	/
11	Wire Feed Roller	Cr12mov	Heat treated 56-60°	/
12	Straightening Roller	Cr12mov	Heat treated 56-60°	/
13	Gear	20CrMnTi	Precision ground, heat treated 56-60°	/
14	Control Method	HMI panel control, switch operation, manual jog & auto selection
15	Process Steps	Loading, pulling, straightening, pressing, rolling, cutting, automatic product discharge
