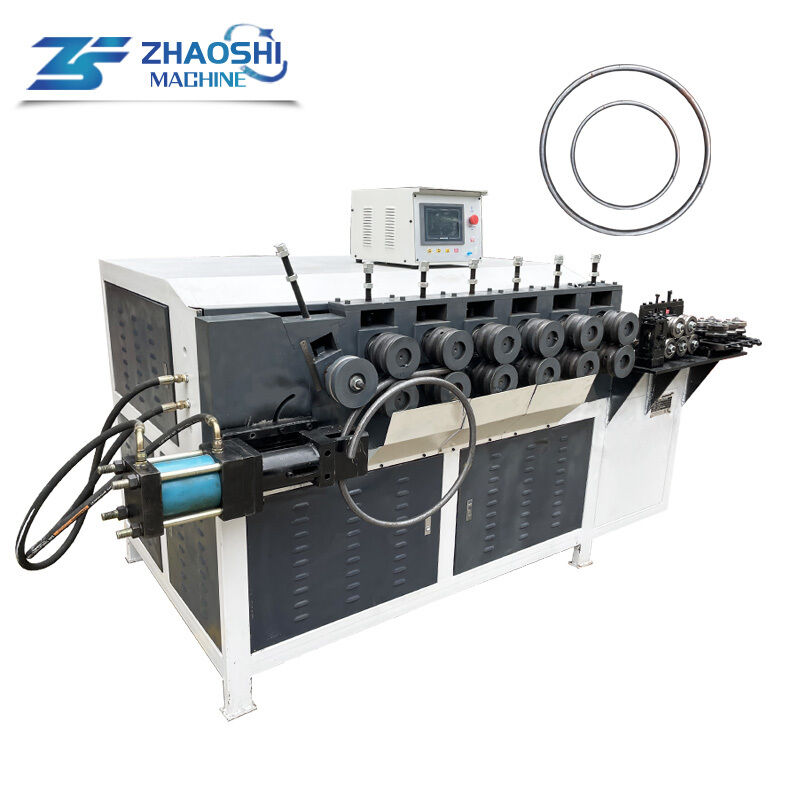

Uniform Coil CNC Wire Bending Machine 16 - 22mm Steel Rod Bending Machine Full Servo

Uniform Coil CNC Wire Bending Machine

16mm Steel Rod Bending Machine

22mm Steel Rod Bending Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

Uniform Coil CNC Wire Bending Machine

16mm Steel Rod Bending Machine

22mm Steel Rod Bending Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

6 Axis Steel Wire Coiling Machine For Iron Wire 16-22mm

This 6-axis coiling machine is specially designed for processing 16-22mm round steel wire. Equipped with full servo six-axis linkage control, it realizes automatic feeding, bending and coiling in one process.

It features stable operation, high forming precision and uniform coil dimension. The finished coils have neat shape and consistent radian. Suitable for various carbon steel and alloy steel wires. Easy parameter adjustment and reliable performance, widely used in construction hardware and metal component production.

Technical Parameters

Item	Specification
Product Name	Six-axis Hydraulic Ring Bending Machine
Wire Diameter (Max)	22MM
Ring Forming Precision	Within ±2MM
Ring Diameter Range	100-1500MM
Hydraulic Motor Power	11.5KW (Sanye Brand Motor)
Reducer	Model 350, Gear Ratio 1:10
Cutting Hydraulic Motor	315ND
Solenoid Valve	4WE10G-3X/220 (Wan'erfu Brand)
Wire Feeding Speed	18 meters per minute
Hydraulic Oil Type	Great Wall Anti-wear Hydraulic Oil 46#
Fuel Tank Capacity	150 kg
Overall Dimension (L×W×H)	Approx. 3700×2000×1750MM
Weight	Approx. 2000KG
Voltage	380V 50HZ
Mold	Made of 40Cr steel, heat-treated with SKD11 process, Hardness above HRC58
Rotating Shaft Quantity	Six upper and lower rotating shafts
Shaft Width	60MM
Wire Feeding Wheel Thickness	132MM
Transmission Mode	Gear transmission
Control Mode	Controlled by PLC and human-machine interface; equipped with switch operation, manual inching and automatic operation functions
