Place of Origin:
Foshan,China
Brand Name:
Zhao,s Machinery

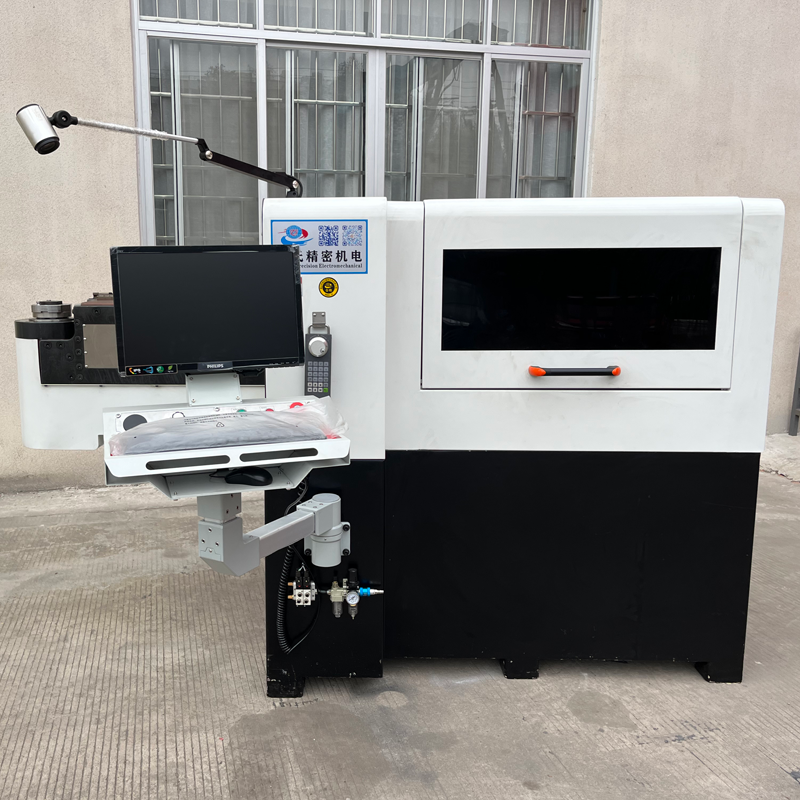

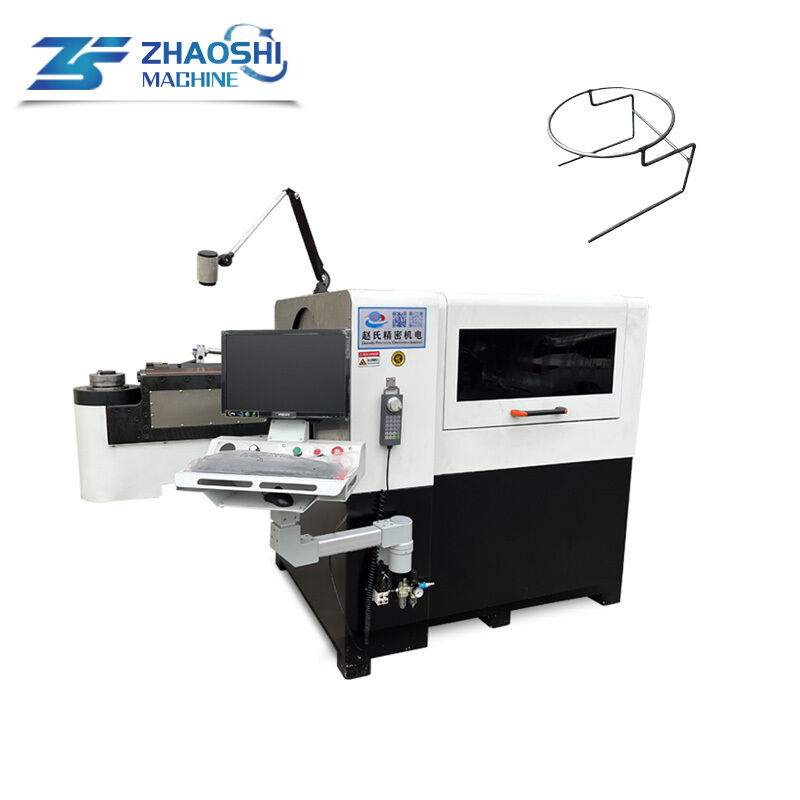

3D Automatic Rotary Head Wire Forming Machine
This CNC rotary-head 3D wire forming machine features a 360° rotating bending turret with “head rotates, wire stays” design, enabling precise 3D bending without wire distortion. Equipped with 5-6 servo axes, it automatically handles feeding, straightening, rotary bending and cutting in one process.
It processes wire diameters 2–16mm (steel, stainless steel, copper, aluminum) for complex 3D shapes like eyeglass frames, fire extinguisher brackets, automotive parts and hardware supports. High precision (±0.02mm), fast changeover and stable performance make it ideal for mass production.
Technical Parameters
|
Specification |
Value |
|
Model |
ZS-3D-8700 |
|
Number of Axes |
5 axes |
|
Processing Wire Diameter |
Hard material: 6.0~10.0mm / Soft material: 10.0~12.0mm |
|
Number of Wire Feed Rollers |
4 sets |
|
Servo Motor Power - Wire Feeding Axis |
4.7KW |
|
Servo Motor Power - Rotary Arm Axis |
4.0KW |
|
Servo Motor Power - Cutter Axis |
2.6KW |
|
Servo Motor Power - Bending Axis |
2.0KW |
|
Servo Motor Power - Core Rotation Axis |
3.0KW |
|
Machine Weight |
2600KG |
|
Input Power Supply |
380V/50HZ/3PH |
|
Machine Dimensions (L×W×H) |
2610mm × 1600mm × 1800mm |
