Place of Origin:
Foshan,China
Brand Name:
Zhao,s Machinery

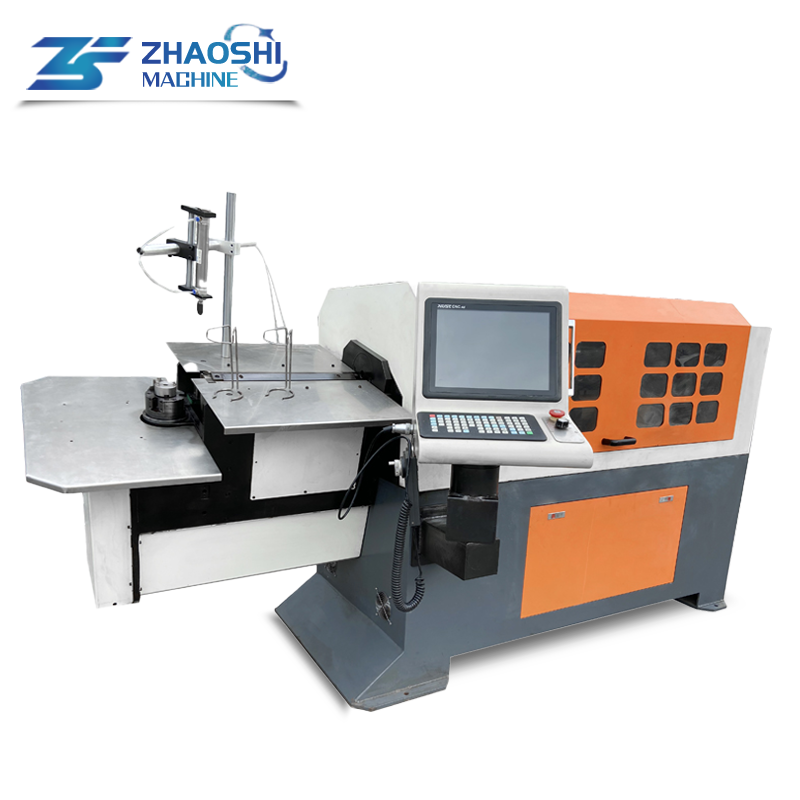

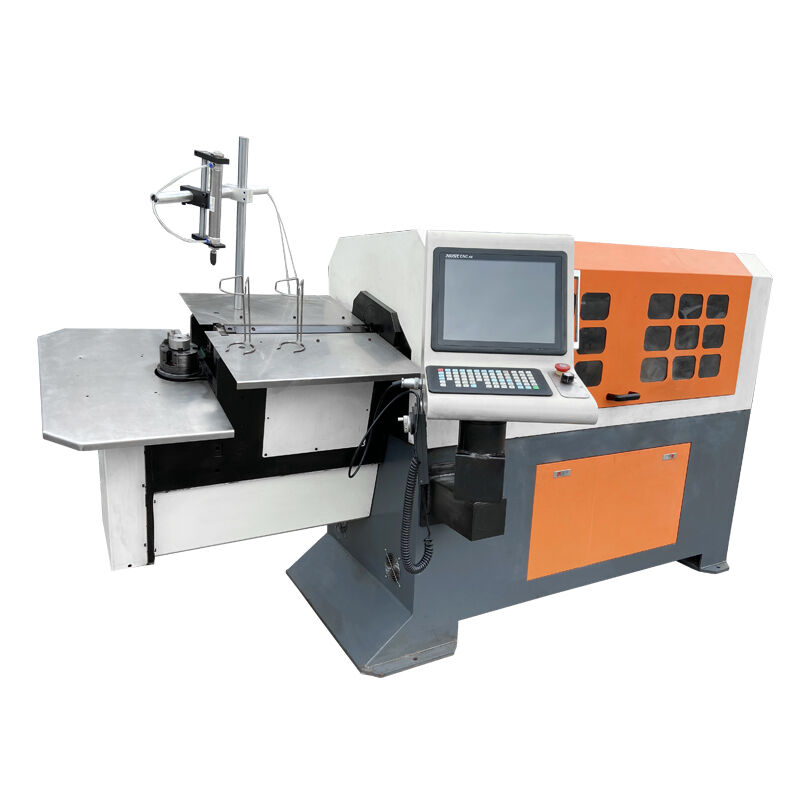

3D Wire Bending Machine For Fire Extinguisher Holder
Our 3D wire bending machine is a high-efficiency CNC equipment designed for 3D bending and forming of metal wires (iron, steel, stainless steel, copper, aluminum). Equipped with 7–10 servo axes and advanced CNC system, it realizes one-time forming of complex 3D shapes without secondary processing.
It supports wire diameters from 2mm to 12mm, with precision up to ±0.02mm. Widely used in eyeglass frames, mirror/photo frames, automotive parts and hardware accessories. Featuring fast changeover, low failure rate and stable performance, it is the ideal choice for mass production
Technical Parameters
|
Parameter |
Specification |
|
Model |
ZS-3D-7Z |
|
Number of Axes |
7 axes |
|
Processing Wire Diameter |
Hard material 2.0~4.0mm, Soft material 2.0~6.0mm |
|
Number of Wire Feed Rollers |
3 sets |
|
Wire Feed Axis Servo Motor Power (Sanyo) |
2.7KW |
|
Wuhan Huada Rotary Axis Servo Motor Power |
3.8KW |
|
Wuhan Huada Cutter Axis Servo Motor Power |
1KW |
|
Wuhan Huada Bending Axis Servo Motor Power |
2.6KW |
|
Wuhan Huada Core Rotating Axis Servo Motor Power |
2.6KW |
|
Wuhan Huada Lifting Axis Servo Motor Power (with brake) |
1KW |
|
Wuhan Huada Turntable Axis Servo Motor Power |
1KW |
|
Machine Weight |
Approx. 3000KG |
|
Input Power Supply |
380V / 60Hz / 3PH |
|
Machine Dimensions (L x W x H) |
3800mm x 13000mm x 1800mm |
