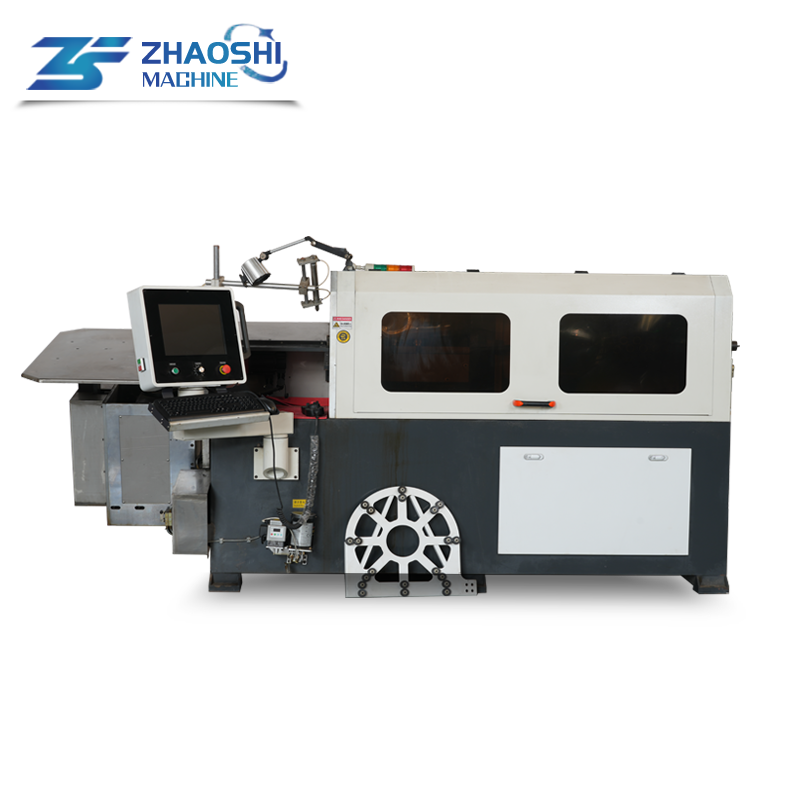

8 Axis CNC Wire Bending Machine High Precision CNC Wire Former Full Servo

8 Axis CNC Wire Bending Machine High Precision CNC Wire Former Full Servo

8 Axis CNC Wire Bending Machine

High Precision CNC Wire Former

Full Servo CNC Wire Former

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now
Request A Quote
8 Axis CNC Wire Bending Machine High Precision CNC Wire Former Full Servo
8 Axis CNC Wire Bending Machine High Precision CNC Wire Former Full Servo
Product Details
Accuracy:
±0.1 Mm
Key Selling Points:
Automatic
Press Brake:
Bending Machine
Angle Precise:
±1°
Size:
850*750*800mm
Ii Reinforced Bar:
6-28mm
Dimension:
1060× 850× 730mm
Bending Angle:
0-180 Degrees
Port:
China Port
Bending Capacity:
Up To 10mm Thickness
Automation:
Manual
Control System:
CNC / Manual / PLC
Main Motor:
Sie-mens From Germany
Machine Type:
Synchronized, Press Brake
Local Service Location:
South Africa
Main Shaft Speed:
8-15r/min
Machine Size:
450*500*440mm
Voltage:
220V / 380V / 440V
Safety Features:
Emergency Stop / Safety Guards
Exact Length:
±1mm
Roller Moving Type:
Hydraulic Drive
Max Bending Speed:
10 Cycles Per Minute
Length Scope:
60-1200 Mm
Showroom Location:
Peru, Kenya, South Korea, Chile
Hydraulic Shears:
Shearing Machine
Heating Mode:
Induction
Model:
GT50
Automatic Level:
Manual
Machinery Test Report:
Provided
Power Source:
Electric
Highlight:

8 Axis CNC Wire Bending Machine

,

High Precision CNC Wire Former

,

Full Servo CNC Wire Former

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Standard export packing
Delivery Time
As agreed by both parties
Payment Terms
Fullpayment
Supply Ability
Normal production capacity
RELATED PRODUCTS
CONTACT US
86--13928219885
zsjx9008@gmail.com
Chat Now
Product Description
3-8mm CNC Automatic Stainless Steel Iron Wire Shaping 3D Wire Bending Machine​


Our 8-Axis 3D CNC Wire Bending Machine adopts eight-axis full-servo linkage system, with independent control for wire feed, bending head rotation, tool positioning, cutting and platform displacement respectively, most servo motors imported for durable stable performance.
Different from conventional 2D bending equipment, It supports 180° rotation of the wire, greatly expanding product design flexibility. The whole processing from raw wire coil feeding to finished cutting is fully automatic, effectively cutting manual cost and improving production efficiency over 25% vs ordinary multi-axis benders.
Applicable wire diameter ranges customized from 2.0mm to 10mm per model, covering iron, stainless, brass and aluminum wire materials. User-friendly CNC system , ideal for mass production of automotive seat frames, bathroom wire racks, craft ornaments, electronic terminals and various precision hardware wire parts. Two-year standard machine warranty with global online after-sales support.

  Technical Parameters


Specification

Value

Model

ZS-3D-8Z

Number of Axes

8 axes

Processing Wire Diameter

Hard material: 3.0~7.0mm / Soft material: 3.0~8.0mm

Number of Wire Feed Rollers

3 sets

Servo Motor Power for Wire Feeding Axis (Sanyo)

4.5KW

Servo Motor Power for Large Rotating Axis (Sanyo)

2.7KW

Servo Motor Power for Cutter Axis (Taiwan Yitu)

1.3KW

Servo Motor Power for Lifting Axis with Brake (Taiwan Yitu)

1.3KW

Servo Motor Power for Translation Axis with Brake (Taiwan Yitu)

1.3KW

Servo Motor Power for Tray Axis (Taiwan Yitu)

1.3KW

Servo Motor Power for External Rotation Axis (Taiwan Yitu)

1.3KW

Servo Motor Power for Internal Mounting Axis (Taiwan Yitu)

1.3KW

Machine Weight

Approx. 3000KG

Input Power Supply

380V/60HZ/3PH

Machine Dimensions (L×W×H)

3800mm × 1300mm × 1800mm
