Multi Servo 3D CNC Wire Bending Machine 5 Axis CNC Wire Bender 6 - 10mm

Multi Servo CNC Wire Bending Machine

5 Axis CNC Wire Bender

6mm CNC Wire Bender

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

Multi Servo CNC Wire Bending Machine

5 Axis CNC Wire Bender

6mm CNC Wire Bender

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

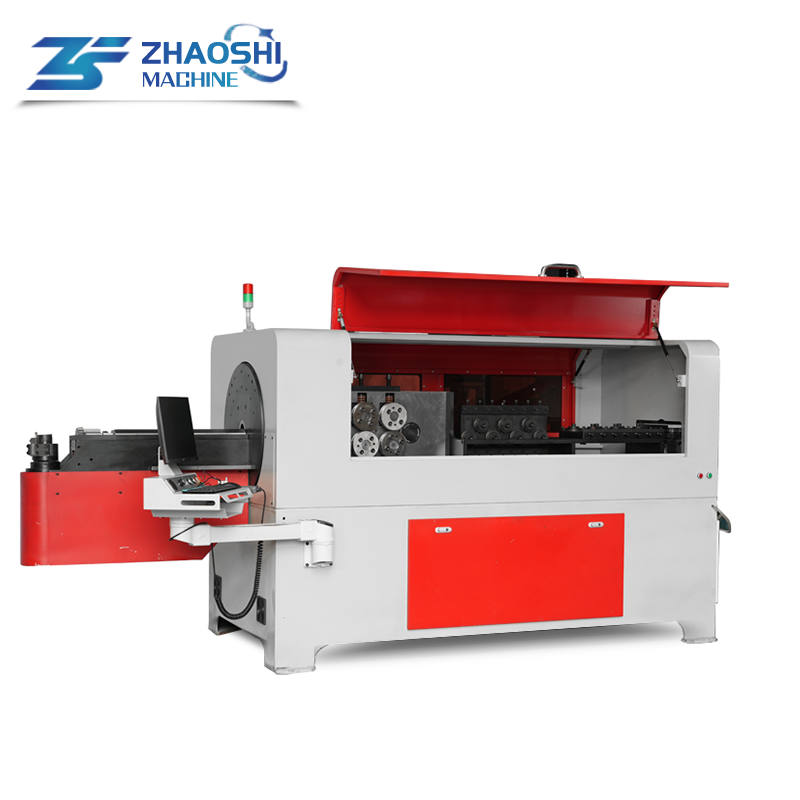

3D CNC Wire Bending Machine For Rotating Head

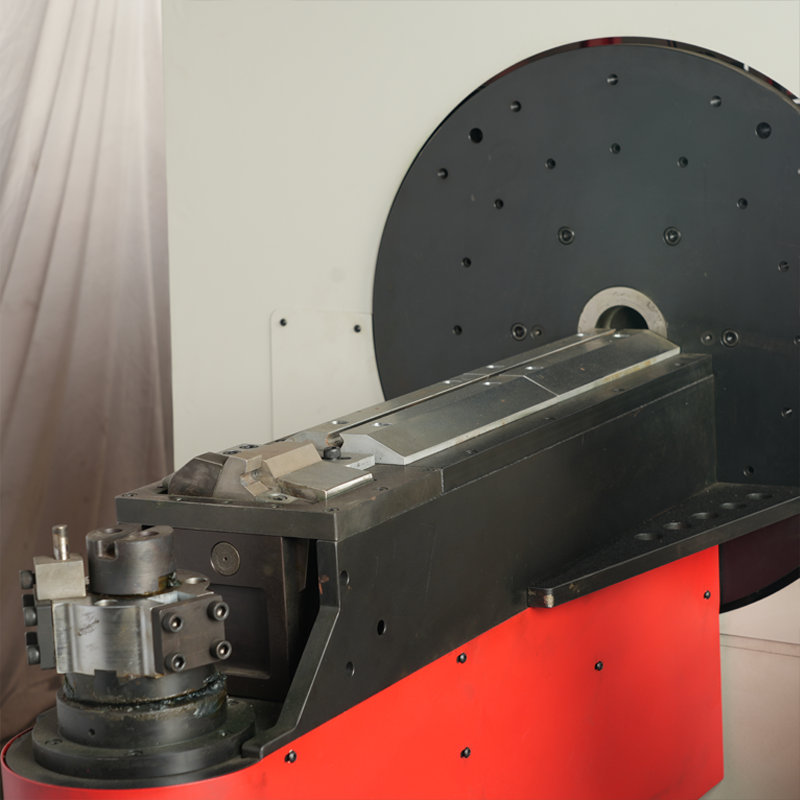

This CNC 3D rotary head wire bending machine features a core head-turning structure with fixed wire, enabling 360° continuous rotation of bending head to finish complex three-dimensional wire forming in one process. Equipped with multi-servo axis linkage and industrial CNC touchscreen controller.

It processes iron, stainless steel, copper and aluminum wire with high dimensional precision up to ±0.02mm. Widely applied in auto spare parts, furniture hardware, supermarket hooks, fan guards and daily metal wire accessories, it greatly improves forming efficiency and replaces multiple traditional bending devices.

Technical Parameters

Specification	Value
Model	ZS-3D-8700
Number of Axes	5 axes
Processing Wire Diameter	Hard material: 6.0~10.0mm / Soft material: 10.0~12.0mm

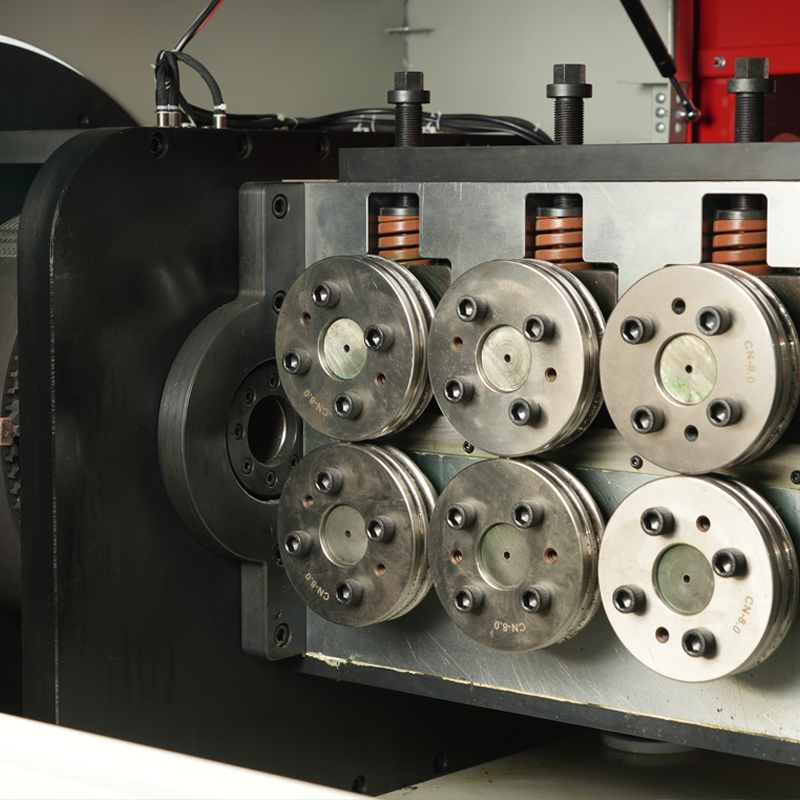

Number of Wire Feed Rollers	4 sets
Servo Motor Power - Wire Feeding Axis	4.7KW
Servo Motor Power - Rotary Arm Axis	4.0KW
Servo Motor Power - Cutter Axis	2.6KW
Servo Motor Power - Bending Axis	2.0KW
Servo Motor Power - Core Rotation Axis	3.0KW
Machine Weight	2600KG
Input Power Supply	380V/50HZ/3PH
Machine Dimensions (L×W×H)	2610mm × 1600mm × 1800mm
