Place of Origin:
Foshan,China
Brand Name:
Zhao,s Machinery

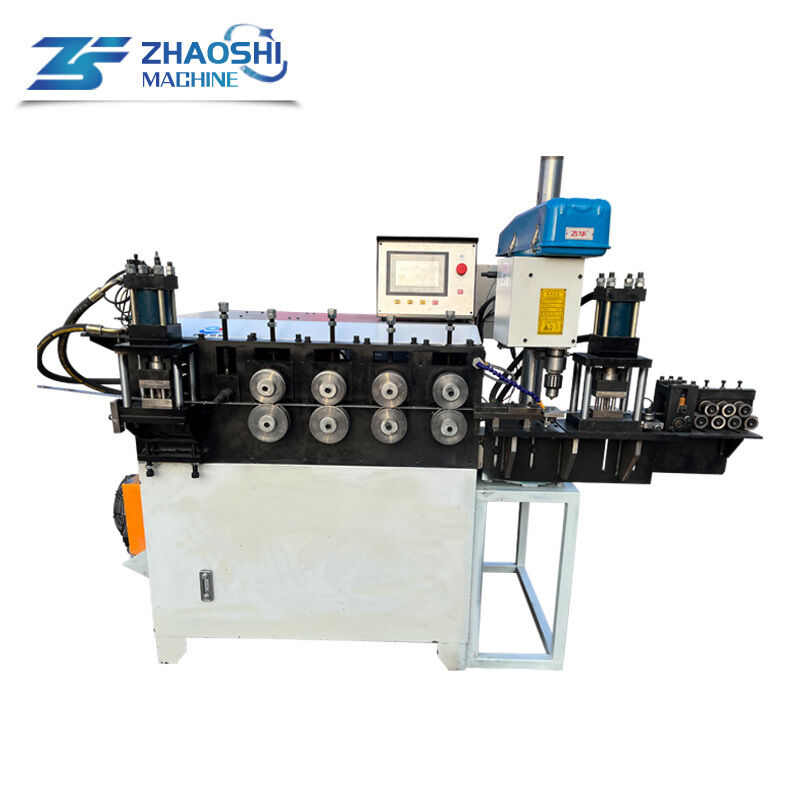

Flat Steel Punching Tapping Machine
This machine is designed for flat iron punching and thread tapping in one pass. It processes carbon steel and galvanized strip with stable hydraulic power, high precision hole and thread. Widely used for stove ring, hardware bracket production.
Technical Parameters
|
Item |
Details |
|
Product Name |
Servo 4-axis Forming Machine |
|
Specification |
Manufactured per customer drawings |
|
Coiling Diameter Tolerance |
Within ±0.5mm |
|
Coiling Diameter Range |
As required by customers |
|
Motor Power |
5.5KW (Fujian Sanye Hydraulic Motor) |
|
Wire Feeding Speed |
28 meters per minute |
|
Overall Dimension (L×W×H) |
Approx. 2500×1550×1550mm |
|
Weight |
Approx. 800KG |
|
Voltage |
380V 50Hz |
|
Operating Temperature |
Normal temperature |
|
Mold Material |
40Cr, Hardness: HRC 50-60 |
|
Rotating Shafts |
4 upper and lower rotating shafts |
|
Control Mode |
Controlled by PLC & human-machine interface; equipped with switch operation, manual inching and automatic mode; supports automatic coiling and cutting |
|
Process Flow |
Feeding → Wire pulling → Counting → Band pressing → Forming → Rolling → Cutting → Automatic product discharging |
