Product Description

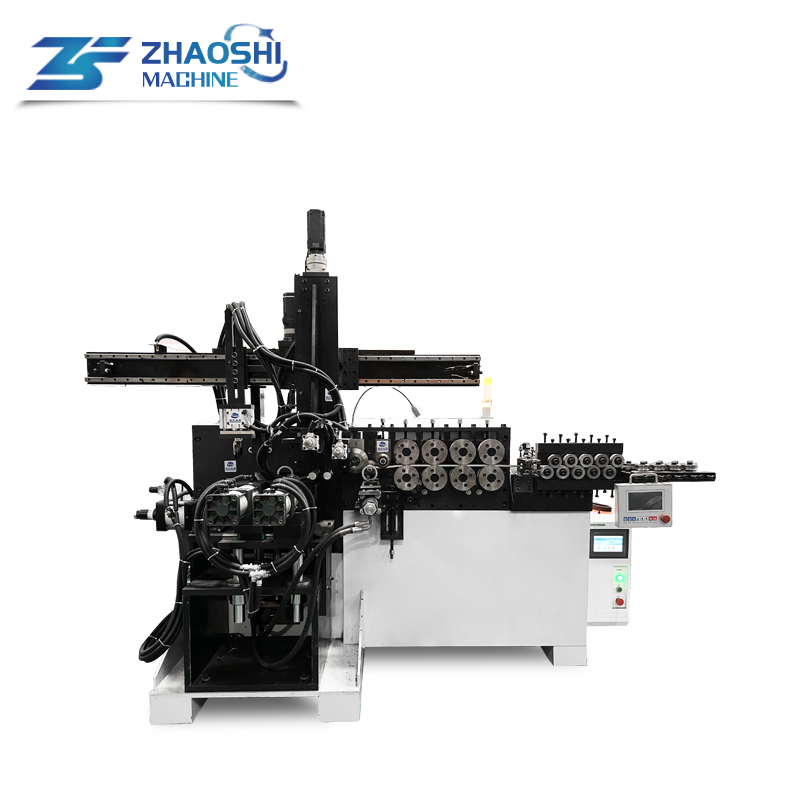

  1. Flat Bar Ring Forming Welding Integrated Machine
The machine completes feeding, ring forming, end trimming, clamping, flash butt welding and automatic unloading integrally.

Servo feeding: Traction rollers grip flat bar and feed with fixed length;

Roll bending: Multiple forming rollers cold-bend straight flat bar into full circle gradually;

End trimming & clamping: Two ends of ring are cut flat and aligned tightly by copper clamps;

Flash butt welding: Low voltage & high current melts joint surface with flash, then hydraulic upsetting presses ends into solid weld joint;

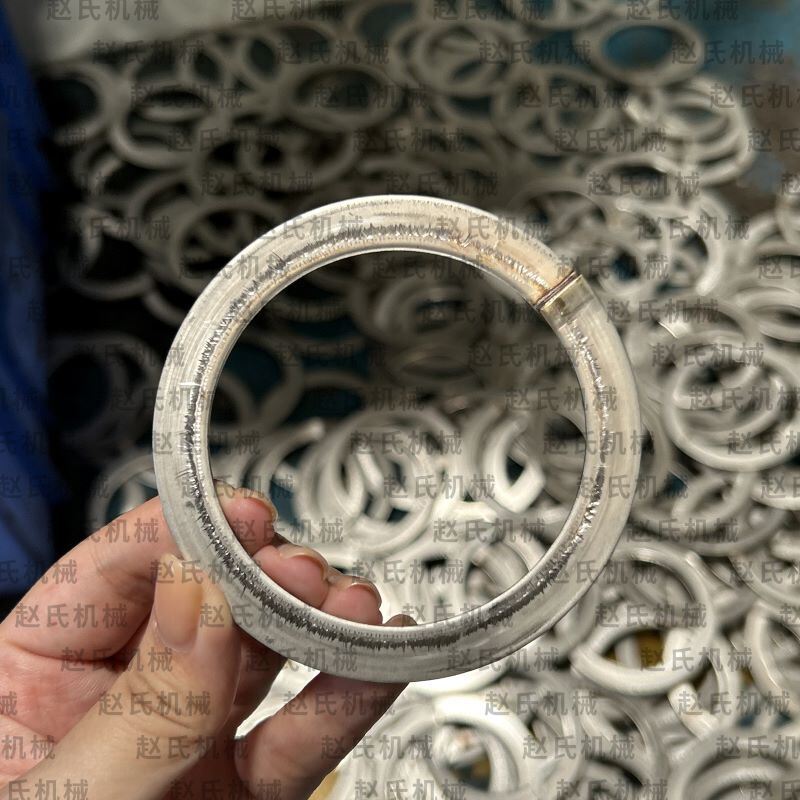

Automatic unloading: Clamps open after cooling, finished rings fall off automatically.

Features

Integrated forming & welding reduces intermediate handling, high efficiency and reliable weld, widely used for flange and base ring mass production.


 Technical Parameters


No.

Specification

Value

Specification

Value

1

Model

ZS-FLJ-4Z

Alias

Looping Machine / Flanging Machine

2

Number of Axes

4 axes

Control System

PLC Control System

3

Control Screen

Button / Touch Screen

Wire Feed Length

Unlimited

4

Forming Speed

5-6 pcs/min

Input Voltage

380V 50Hz

5

Machine Weight

1200KG (actual weight prevails)

Machine Dimensions

2300×1300×1650 MM



Structural Components







6

Component Name

Specification/Material

Brand/Model

Remarks

7

Feeding

3.5kw

Domestic

Servo Motor

8

Cutting Hydraulic

5.5KW

Domestic

Hydraulic Motor

9

Up/Down/Left/Right Adjustment (XY Axis)

1kw×2 pcs

Domestic

Servo Motor

10

Auto Size Adjustment

2kw

Domestic

Servo Motor

11

Gripping

Pneumatic

Domestic

Pneumatic

12

Straightening Rollers

12 sets





13

Wire Feed Roller Sets

4 sets





14

Wire Feed Roller Material

40Cr





15

Forming Wheel

Cr12mov





16

Applicable Wire Material

Stainless Steel

Material Size (Thickness×Width)

2.5mm×9

17

Cutting Blade

White Steel Blade (Cr12 Die Steel)

Zhao's

/

18

Bottom Blade

White Steel Blade (Cr12 Die Steel)

Zhao's

/



Medium Frequency AC Welder







19

Model

IDW-10000T

Power Supply

IDW-10000T

20

Brand

Domestic

Transformer

Y225C

21

Control Method

HMI panel control, switch operation, manual jog & auto selection





22

Process Steps

Loading, pulling, straightening, pressing, rolling, cutting, welding




Tags：

Automatic Wire Bending Machine

3D Wire Bending Machine

Automatic Wire Bender
