Place of Origin:
Foshan,China
Brand Name:
Zhao,s Machinery

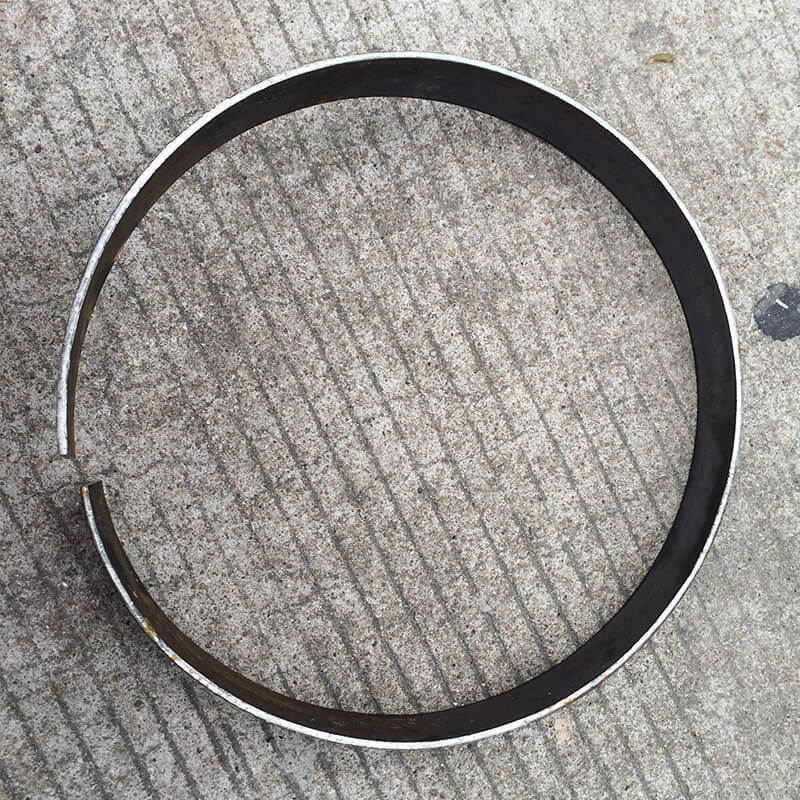

Flat bar is fed uniformly by feeding rollers. Progressive bending via forming rollers rolls straight flat bar into circular ring. Once ring forming completes, hydraulic cutter cuts off material vertically to get flat and square end faces for convenient butt welding.
Feeding: Traction rollers grip flat bar for fixed-length feeding;
Ring forming: Gradual bending by forming rollers to form standard round ring;
Square end cutting: Vertical cutting ensures neat flat joint ends;
Automatic finished ring unloading.
Technical Parameters
|
Item |
Specification |
|
Product Name |

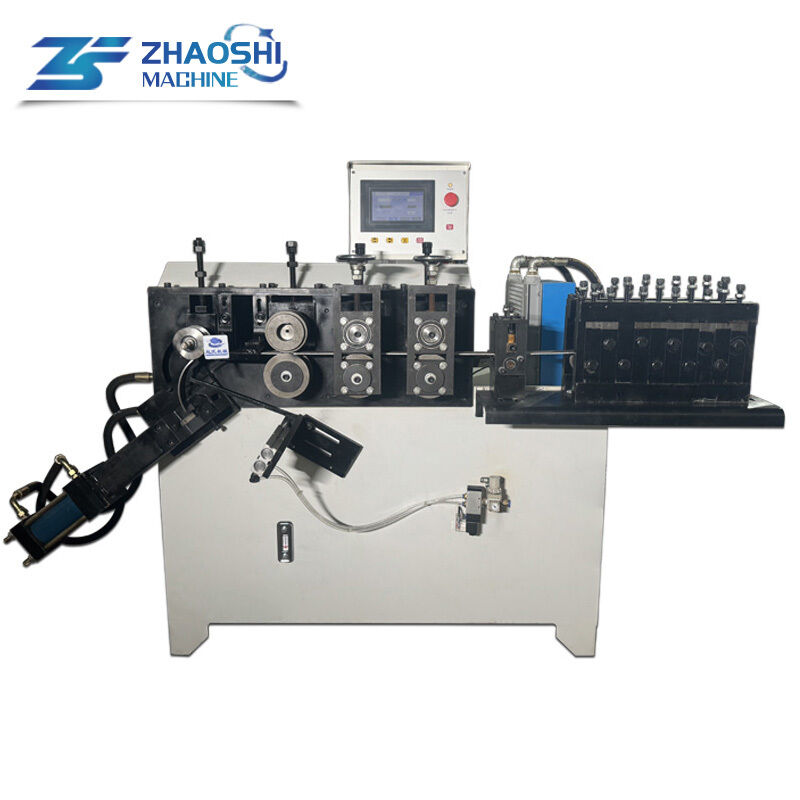

3-Axis Servo Flat Steel Coiling Machine |
|
Specifications |
Made in accordance with customer product requirements |
|
Coiling Precision |
Within ±0.5mm |
|
Coil Inner Diameter Range |
60 - 1200mm |
|
Servo Wire Feeding Motor |
5.5KW (Weichuang) |
|
Motor Power |
5.5KW (Fujian Sanye Motor) |
|
Wire Feeding Speed |
20 meters per minute |
|
Overall Dimension (L×W×H) |
Approx. 2600×1550×1750mm |
|
Weight |
Approx. 1000KG |
|
Voltage |
380V 50Hz |
|
Operating Temperature |
Normal temperature |
|
Mold Material |
Cr12 |
|
Rotating Shafts |
3 upper and lower rotating shafts |
|
Control Mode |
PLC & HMI control, with switch operation, manual inching and automatic mode selection |
|
Process Flow |
Feeding, wire pulling, counting, band pressing, forming, rolling, cutting and automatic discharging |
|
Machine Structure |
Vertical type |
