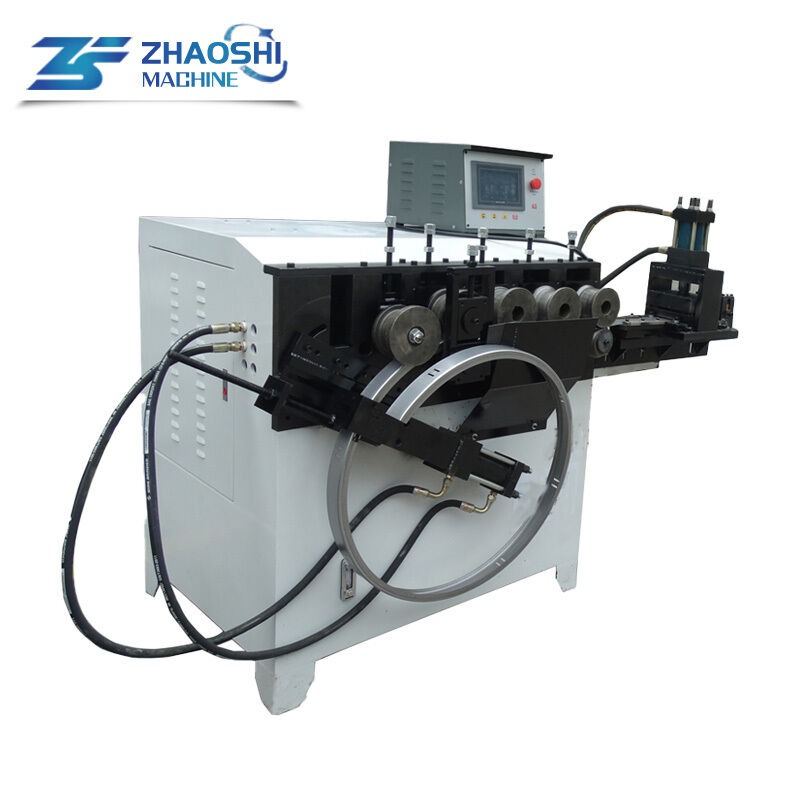

High Precision CNC Wire Bending Machine Automatic Ring Rolling Machine Steel Strip

High Precision CNC Wire Bending Machine

Automatic Ring Rolling Machine

Steel Strip Ring Rolling Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

High Precision CNC Wire Bending Machine

Automatic Ring Rolling Machine

Steel Strip Ring Rolling Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

Steel Strip Roll Forming Machine For Automatic Table Ring Roll Forming Machine is a specialized automatic metal forming equipment independently developed for the mass production of metal table rings, chair rings and furniture circular frame profiles. It perfectly matches the processing needs of metal accessories for dining tables, tea tables, office tables and various furniture bases.

This machine integrates unwinding, feeding, leveling, continuous roll forming, precise rounding, fixed-length cutting and automatic discharging into one unit, realizing fully automated one-time molding without secondary processing. Adopting high-precision alloy forming rollers and servo control system, it ensures smooth product surface, uniform roundness and consistent dimensional accuracy of finished table rings, effectively avoiding deformation and burrs.

Featuring simple operation, stable performance and high production efficiency, the equipment supports customized processing of different specifications of steel strips and ring diameters. It is suitable for processing various metal materials such as cold-rolled steel strip, galvanized steel strip and stainless steel strip, which greatly reduces labor costs and improves product qualification rate. It is an ideal processing equipment for furniture metal accessory manufacturers.

Technical Parameters

Item	Details
Product Name	Servo 4-axis Forming Machine
Specification	Manufactured per customer drawings
Coiling Diameter Tolerance	Within ±0.5mm
Coiling Diameter Range	As required by customers
Motor Power	5.5KW (Fujian Sanye Hydraulic Motor)
Wire Feeding Speed	28 meters per minute
Overall Dimension (L×W×H)	Approx. 2500×1550×1550mm
Weight	Approx. 800KG
Voltage	220V,380V,415V,440V
Operating Temperature	Normal temperature
Mold Material	40Cr, Hardness: HRC 50-60
Rotating Shafts	4 upper and lower rotating shafts
Control Mode	Controlled by PLC & human-machine interface; equipped with switch operation, manual inching and automatic mode; supports automatic coiling and cutting
Process Flow	Feeding → Wire pulling → Counting → Band pressing → Forming → Rolling → Cutting → Automatic product discharging
