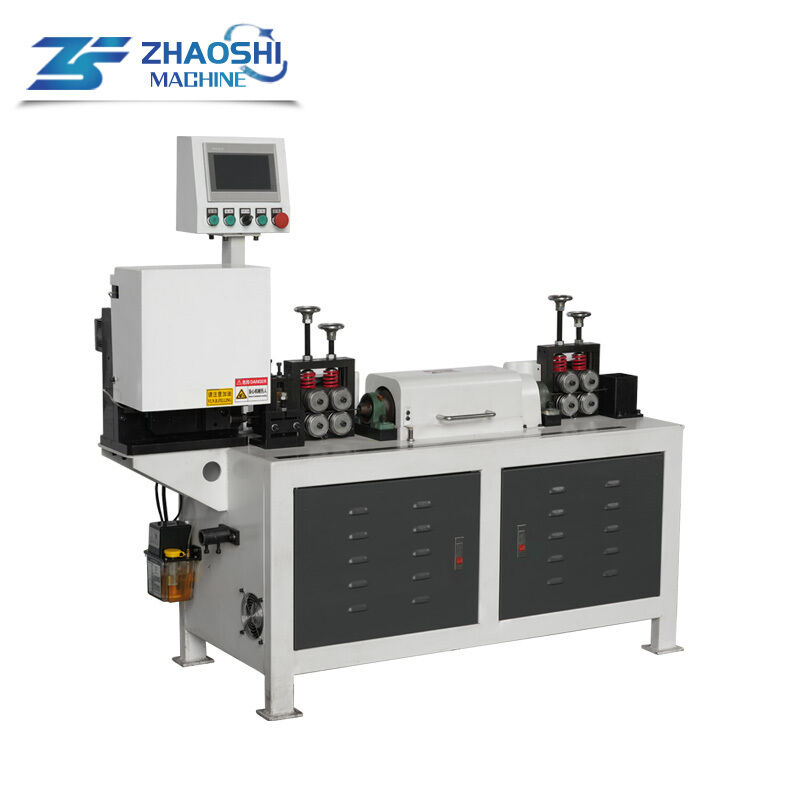

CNC Wire Straightening Machine 380V Wire Straightener And Cutter For Iron Wire 2 - 6MM

CNC Wire Straightening Machine

Wire Straightening Machine 380V

380V Wire Straightener And Cutter

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now

Request A Quote

Product Details

Accuracy:

±0.1 Mm

Key Selling Points:

Automatic

Press Brake:

Bending Machine

Angle Precise:

±1°

Size:

850*750*800mm

Ii Reinforced Bar:

6-28mm

Dimension:

1060× 850× 730mm

Bending Angle:

0-180 Degrees

Port:

China Port

Bending Capacity:

Up To 10mm Thickness

Automation:

Manual

Control System:

CNC / Manual / PLC

Main Motor:

Sie-mens From Germany

Machine Type:

Synchronized, Press Brake

Local Service Location:

South Africa

Main Shaft Speed:

8-15r/min

Machine Size:

450*500*440mm

Voltage:

220V / 380V / 440V

Safety Features:

Emergency Stop / Safety Guards

Exact Length:

±1mm

Roller Moving Type:

Hydraulic Drive

Max Bending Speed:

10 Cycles Per Minute

Length Scope:

60-1200 Mm

Showroom Location:

Peru, Kenya, South Korea, Chile

Hydraulic Shears:

Shearing Machine

Heating Mode:

Induction

Model:

GT50

Automatic Level:

Manual

Machinery Test Report:

Provided

Power Source:

Electric

Highlight:

CNC Wire Straightening Machine

Wire Straightening Machine 380V

380V Wire Straightener And Cutter

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Standard export packing

Delivery Time

As agreed by both parties

Payment Terms

Fullpayment

Supply Ability

Normal production capacity

RELATED PRODUCTS

86--13928219885

zsjx9008@gmail.com

Chat Now

Product Description

CNC Tracking Shear Straightening Machine For Iron Wire 2-6MM

This machine is designed for straightening and cutting round wires with diameter from 2mm to 6mm. Equipped with CNC and servo control system, it achieves continuous feeding, precision straightening and synchronous tracking shear without shutdown.

It ensures excellent straightness and burr-free cutting ends. Suitable for carbon steel, galvanized steel and stainless steel round wires. With high running speed, stable performance and easy operation, it is widely applied in hardware, furniture and metal parts manufacturing for mass production

Technical Parameters

Name	Model/Specification	Power	Qty	Voltage	Remarks
Programmable Logic Controller	XD3-24T-E		1
Driver	ASD620B120A00A		1	380V	Wire Feeding
Servo Motor	130ST-M10025A-N	2.0KW	1	380V	Wire Feeding
Driver	ASD620B120A00A		1	220V	Cutting
Servo Motor	130ST-M10025A-N	2.0KW	1	220V	Cutting
Xinjie Touch Screen	TG765-UT		1
Servo Cable	ASD600EPW0030 / ASD600EEN0030		1
Frequency Inverter	AT500-T3-4R0G/5R5PB	10KAW	1
485 Communication Card	485		1
External Encoder	S380G1-5000BM		1
Braking Resistor	500W100R		1
Production Efficiency: Medium Speed Flying Shear Straightener	Wire diameter approx. 2.0-6.0mm: 35-45m/min				Wire diameter approx. 4.0-6.0mm: 50m/min; Copper wire: 5-6mm; Aluminum wire: 7mm

Parameter	Specification
Processed Material	Ordinary material
Machine Weight	Approx. 200KG
Length Accuracy Tolerance	±0.5
Max Straightening Shaft Rotation Speed	22,000/min
Processing Wire Diameter	Round wire 2-6mm

Parameter	Specification
Cutting Length Adjustment Range	Unlimited, fully CNC adjustable
Input Power Supply	380V / 50Hz / 3PH
Machine Dimensions (L×W×H)	1300mm × 400mm × 800mm
