Touch Screen Ring Welding Machine PLC Control Automatic Ring Forming Machine

Touch Screen Ring Welding Machine PLC Control Automatic Ring Forming Machine

Touch Screen Ring Welding Machine

PLC Control Automatic Ring Forming Machine

Touch Screen Automatic Ring Forming Machine

Place of Origin:

Foshan,China

Brand Name:

Zhao,s Machinery

Chat Now
Request A Quote
Touch Screen Ring Welding Machine PLC Control Automatic Ring Forming Machine Touch Screen Ring Welding Machine PLC Control Automatic Ring Forming Machine
Product Details
Accuracy:
±0.1 Mm
Key Selling Points:
Automatic
Press Brake:
Bending Machine
Angle Precise:
±1°
Size:
850*750*800mm
Ii Reinforced Bar:
6-28mm
Dimension:
1060× 850× 730mm
Bending Angle:
0-180 Degrees
Port:
China Port
Bending Capacity:
Up To 10mm Thickness
Automation:
Manual
Control System:
CNC / Manual / PLC
Main Motor:
Sie-mens From Germany
Machine Type:
Synchronized, Press Brake
Local Service Location:
South Africa
Main Shaft Speed:
8-15r/min
Machine Size:
450*500*440mm
Voltage:
220V / 380V / 440V
Safety Features:
Emergency Stop / Safety Guards
Exact Length:
±1mm
Roller Moving Type:
Hydraulic Drive
Max Bending Speed:
10 Cycles Per Minute
Length Scope:
60-1200 Mm
Showroom Location:
Peru, Kenya, South Korea, Chile
Hydraulic Shears:
Shearing Machine
Heating Mode:
Induction
Model:
GT50
Automatic Level:
Manual
Machinery Test Report:
Provided
Power Source:
Electric
Highlight:

Touch Screen Ring Welding Machine

,

PLC Control Automatic Ring Forming Machine

,

Touch Screen Automatic Ring Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Standard export packing
Delivery Time
As agreed by both parties
Payment Terms
Fullpayment
Supply Ability
Normal production capacity
RELATED PRODUCTS
CONTACT US
86--13928219885
zsjx9008@gmail.com
Chat Now
Product Description

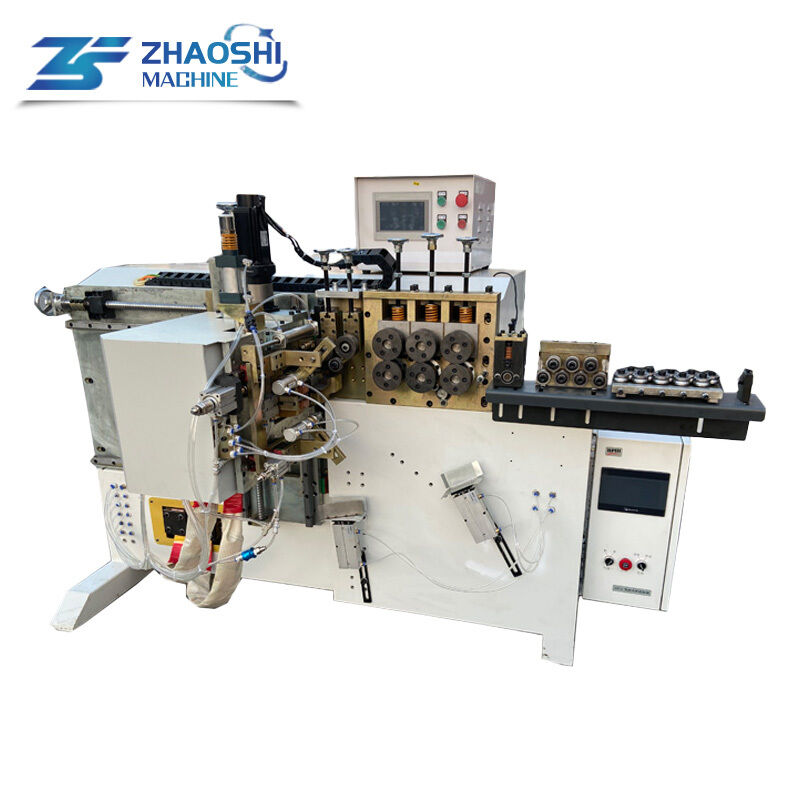

Automatic Ring Forming Butt Welding Machine

    This integrated ring butt welder completes wire straightening, auto feeding, ring forming, fixed-length cutting, clamping, flash butt  welding and automatic unloading in one process for iron wire, stainless steel wire and galvanized wire to produce closed metal rings.
  1. Wire straightening & feeding: Straightening rollers correct deformed wire and feed steadily to ensure consistent ring dimension.
  2. Ring forming & cutting: Different ring diameters available by changing forming dies, accurate fixed-length cutting.
  3. Flash butt welding: Copper jaws precisely clamp joint ends; weld by resistance heat without filler wire, high tensile strength at weld seam.
  4. PLC control: Welding current, upset force and processing size are adjustable; equipped with overload & no-material protection with fault alarm.

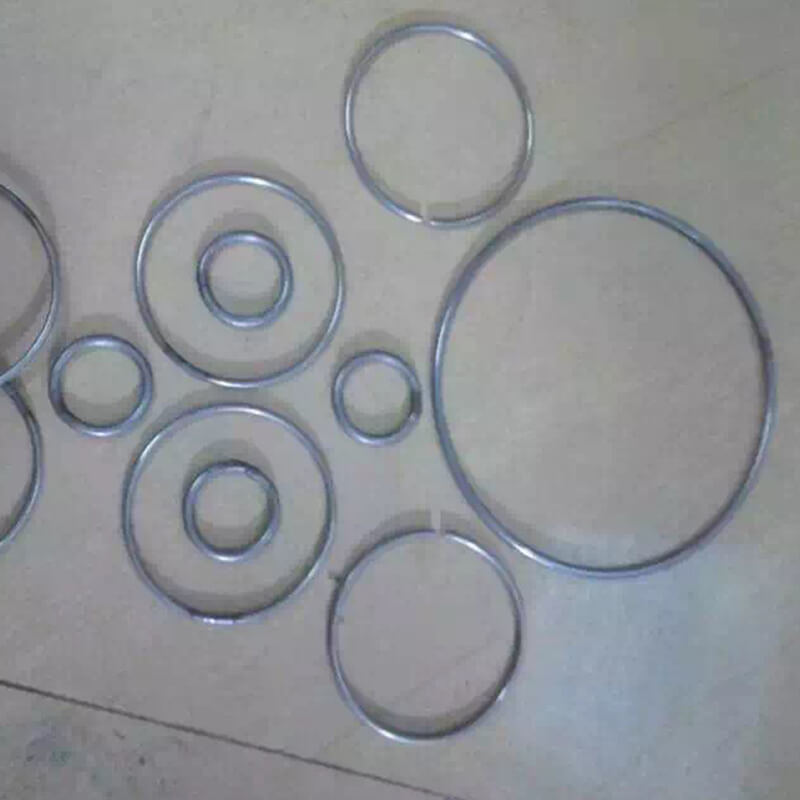

  5. Full-automatic continuous running, finished rings drop automatically. Widely used for fan guard rings, hardware rings, luggage rings and other ring mass production.



Technical Parameters



Parameter

Specification

Parameter

Specification

Touch Screen

7-inch screen

Control Method

CNC PLC Human-Machine Interface

Wire Diameter Range

2mm – 6mm Iron Wire

Wire Feeding Speed

50 m/min

Coil Diameter Range

Standard machine: 60mm – 650mm

Wire Feeding Accuracy

±0.2mm/m

Wire Feeding Accuracy

±0.2mm/m

Coiling Wire Diameter

2-6mm

Coil Diameter Tolerance

±0.3mm

Circumference Tolerance

±0.3mm

Production Capacity

Approx. 20 pcs/min

Flatness

<0.5mm

Reducer

Niugeler

Bearing

Harbin

Button

Logitech

Motor Power Cable

1

Encoder

SANYO

Machine Weight

650KG

Component Name

Brand / Origin

Switching Power Supply

Domestic

Input Power Supply

380V / 50Hz / 3PH

Machine Base Material

A3 Steel

Machine Dimensions (L×W×H)

1800mm × 1200mm × 1800mm





Parts List

Name

Model/Specification

Power

Qty

Voltage

Remarks

Driver

i3DW-06A20 (1-to-1)

6A

1

220V

2-axis

Wire Feed Motor

MK130-M10025

2.6KW

1

220V

With planetary reducer

Cutting Motor

SDV3-2S1.5G

1.0KW

1

220V

With planetary reducer

Pneumatic Solenoid Valve

4V310



8





Welding Power

40KVA Pure Copper



1



Class A

Control Box

LC-11



1



Built-in tempering function

Motor Encoder Cable





1



Motor encoder cable

AC Transformer

350×280×160

10KAW

1





External Encoder

S380G1-5000BM



1
